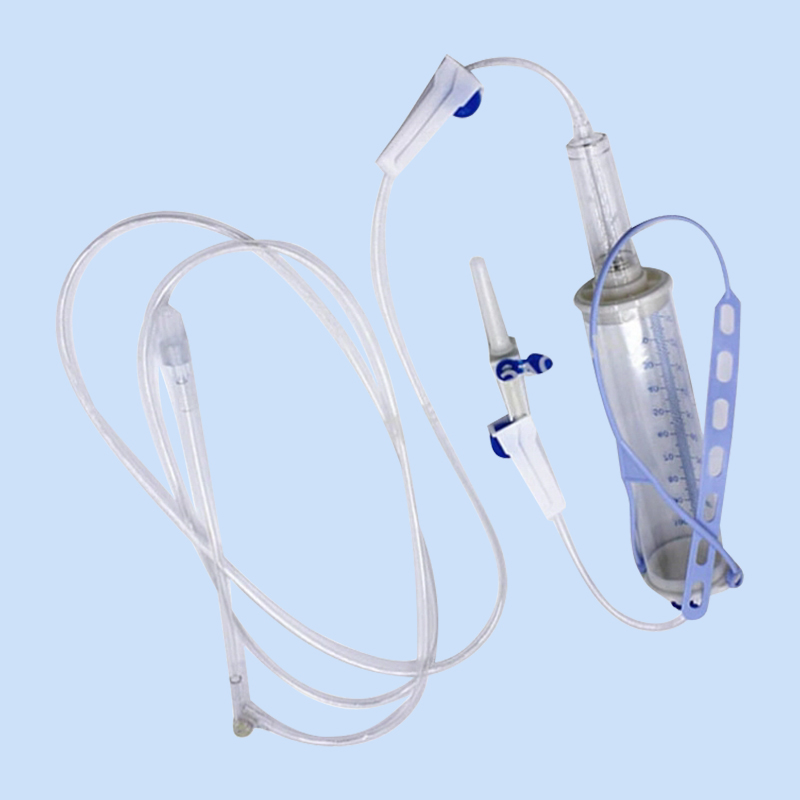

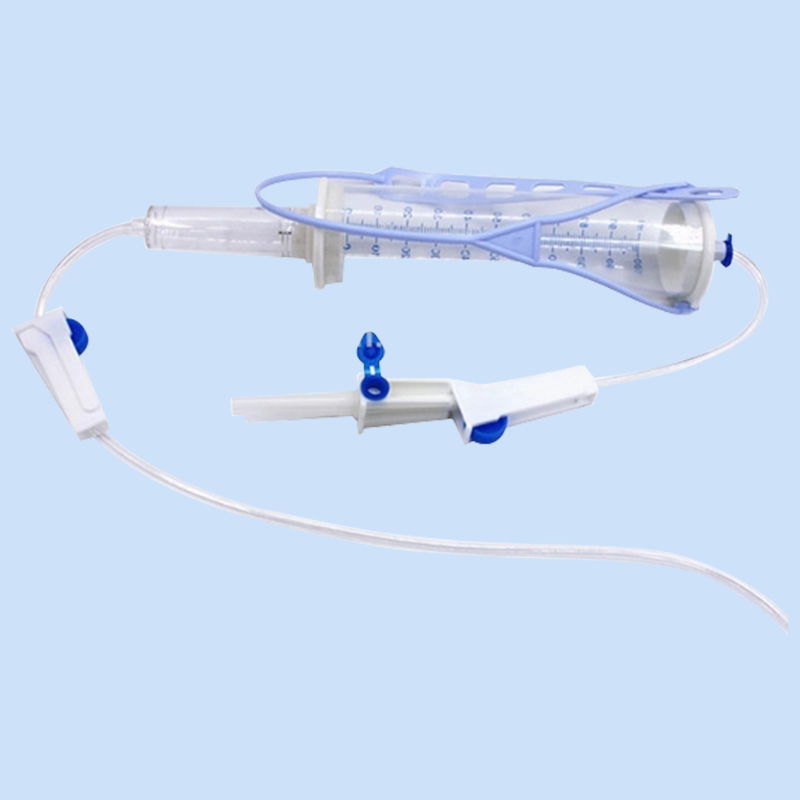

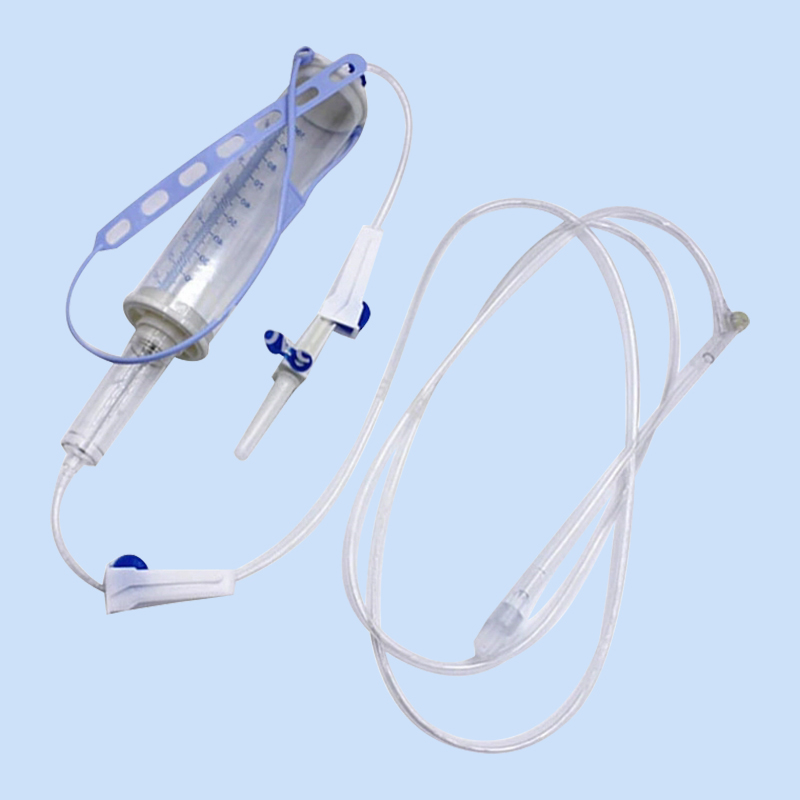

Pediatric Infusion Set With Burette

Haorunmed Pediatric Infusion Set With Burette detailed introduction:

1. Core components

Burette:

Function: Transparent plastic or glass tube with scale marks inside, used to observe the liquid drip rate and manually adjust the speed.

Design features:

With a manual adjustment knob or slide valve, medical staff can accurately control the number of drops (drops per minute) according to the child's weight, age or drug characteristics.

The transparent material facilitates real-time monitoring of liquid flow status and possible blockages.

Infusion Tubing:

Material: Soft, hypoallergenic medical-grade plastic (such as PVC or silicone) to reduce irritation to children's skin.

Connection end:

One end is connected to the infusion bag/bottle, and the other end is connected to the intravenous indwelling needle, scalp needle or PICC catheter.

Usually with an anti-backflow valve to prevent blood from flowing back or air from entering the blood vessels.

Needle/connection device:

Pediatric needle: The needle is thinner (such as 22G-24G) to reduce damage to children's blood vessels, and is often used with a butterfly needle or an IV cannula.

Safety design: Needle protection cover or anti-needlestick device to reduce the risk of infection for medical staff.

Other accessories:

Filter: Remove particles in the infusion to ensure the purity of the drug.

Flow regulator: Additional mechanical or manual device to assist in controlling the drip rate or pressure.

2. Core advantages

Precise control of drip rate:

For children (especially newborns or low-weight infants), the drug dosage must be strictly calculated according to body weight. The manual dropper can accurately control the drip rate (for example, 1 drop/minute to 20 drops/minute) to avoid too fast or insufficient dripping.

High safety:

Vascular protection: Thin needles and soft tubing reduce the risk of damage to children's small blood vessels.

Leak-proof design: The joints are tightly sealed to reduce skin irritation or infection caused by liquid leakage.

Visual monitoring: The transparent dropper allows medical staff to observe the flow of liquid at any time and quickly detect blockage or bubble problems.

Easy to operate:

Easy to adjust: Medical staff can quickly adjust the drip rate by rotating the knob on the dropper without the need for complex electronic equipment.

Portability: Lightweight and small in size, suitable for mobile treatment (such as emergency treatment, transfer) or home care scenarios.

Applicable to a variety of scenarios:

Outpatient infusion, hospitalization, postoperative rehydration, chemotherapy drug infusion, etc.

Compatible with a variety of drug delivery methods (such as antibiotics, nutrient solutions, sedatives, etc.).
